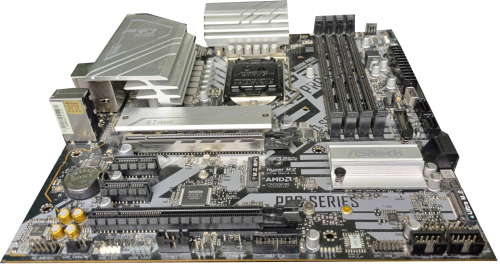

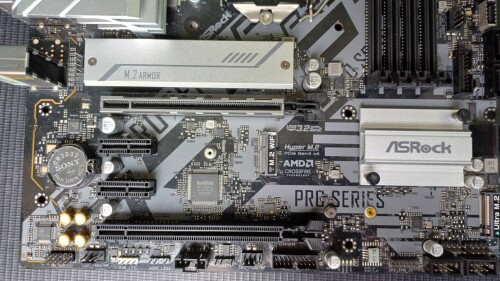

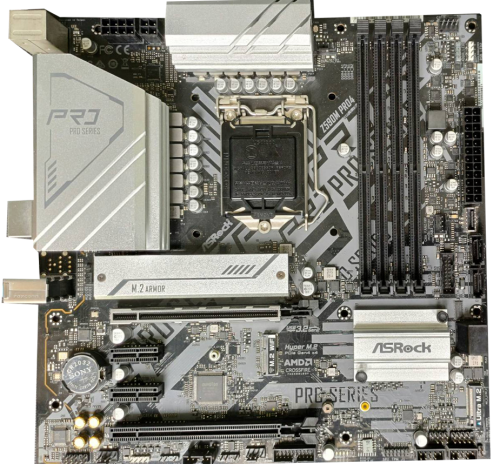

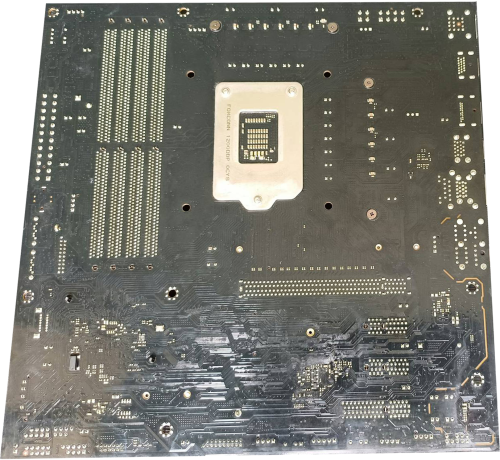

    [ขาย] ขาย Mainboard ASROCK Z590M PRO 4 (มือ2)

    ขาย Mainboard ASROCK Z590M PRO 4 (มือ2) ราคา 2490 บาท

    ประกัน Advice หมด 11 สิงหาคม 2567

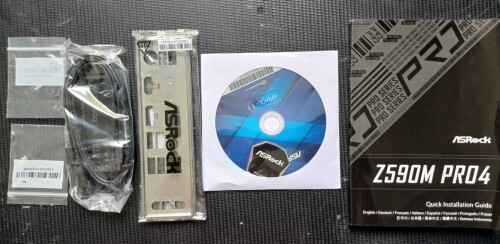

    สภาพสินค้า ดี มีครบกล่อง
    สนใจติดต่อโทร 0863416107
    กรุงเทพ รามอินทรา 39


    Shopee ---> https://shopee.co.th/netphrik


    รายละเอียดสินค้า (1200) ASROCK Z590M PRO 4

    คุณสมบัติ (1200) ASROCK Z590M PRO 4

    Brand ASROCK
    Model Z590M Pro4
    CPU Support Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
    Digi Power design
    12 Power Phase design
    Supports Intel® Turbo Boost Max 3.0 Technology
    Supports Intel® K-Series unlocked CPUs

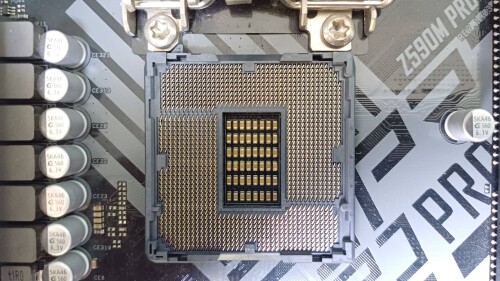

    Socket 1200
    Chipset Intel Z590
    Memory Support Dual Channel DDR4 Memory Technology

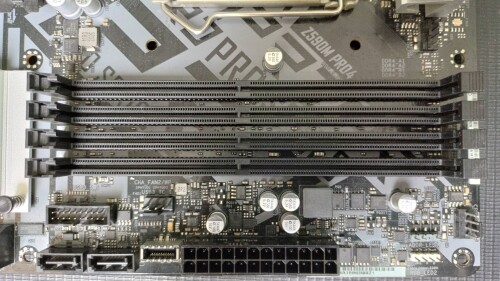

    4 x DDR4 DIMM Slots
    11th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
    10th Gen Intel® Core™ Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
    Supports ECC UDIMM memory modules (operate in non-ECC mode)
    Max. capacity of system memory: 128GB**
    Supports Intel® Extreme Memory Profile (XMP) 2.0

    *11th Gen Intel® Core™ (i9/i7/i5) support DDR4 up to 3200; Core™ (i3), Pentium® and Celeron® support DDR4 up to 2666.
    10th Gen Intel® Core™ (i9/i7) support DDR4 up to 2933; Core™ (i5/i3), Pentium® and Celeron® support DDR4 up to 2666.
    **Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    Memory Type DDR4
    Memory Bus 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MHz
    Memory Slot 4 Slots
    Graphics 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
    Graphics, Media & Compute: Microsoft® DirectX 12, OpenGL 4.5, Intel® Built In Visuals, Intel® Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
    Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft® PlayReady 3.0, UHD/HDR Blu-ray Disc
    Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
    Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
    Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
    Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
    -Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports

    *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    11th Gen Intel® Core™ Processors support HDMI 2.0. 10th Gen Intel® Core™ Processors support HDMI 1.4.
    Multi Graphic Support None
    Audio 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
    Supports Surge Protection
    Nahimic Audio
    Expansion Slots 11th Gen Intel® Core™ Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x16 (PCIE1) / Gen3x4 (PCIE4))*
    10th Gen Intel® Core™ Processors
    - 2 x PCI Express x16 Slots (PCIE1/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x16 (PCIE1) / Gen3x4 (PCIE4))*

    - 2 x PCI Express 3.0 x1 Slots
    - Supports AMD Quad CrossFireX™ and CrossFireX™
    - 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)

    *Supports NVMe SSD as boot disks
    Storage 4 x SATA3 6.0 Gb/s Connectors*
    1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with 11th Gen Intel® Core™ Processors) or Gen3x4 (32 Gb/s) (with 10th Gen Intel® Core™ Processors)**
    1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

    *If M2_1 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
    **Supports Intel® Optane™ Technology
    Supports NVMe SSD as boot disks
    Supports ASRock U.2 Kit
    USB N/A
    Internal I/O Connectors 1 x SPI TPM Header
    1 x Chassis Intrusion and Speaker Header
    2 x RGB LED Headers*
    2 x Addressable LED Headers**
    1 x CPU Fan Connector (4-pin)***
    1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
    4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
    1 x 24 pin ATX Power Connector
    1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
    1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
    1 x Front Panel Audio Connector
    1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
    2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
    1 x Front Panel Type C USB 3.2 Gen1 Header (Supports ESD Protection)

    *Support in total up to 12V/3A, 36W LED Strip
    **Support in total up to 5V/3A, 15W LED Strip
    ***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
    ****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    *****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
    CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
    Back Panel Connectors 3 x Antenna Mounting Points
    1 x PS/2 Mouse/Keyboard Port
    1 x HDMI Port
    1 x DisplayPort 1.4
    2 x USB 3.2 Gen2 Ports (10 Gb/s) (ReDriver) (Supports ESD Protection)
    2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
    2 x USB 2.0 Ports (Supports ESD Protection)
    1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
    HD Audio Jacks: Line in / Front Speaker / Microphone
    LAN Gigabit LAN 10/100/1000 Mb/s
    Giga PHY Intel® I219V
    Supports Wake-On-LAN
    Supports Lightning/ESD Protection
    Supports Energy Efficient Ethernet 802.3az
    Supports PXE
    Wireless Data Network None
    Form Factor Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm
    Solid Capacitor design
    H/W Monitoring Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
    Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
    CASE OPEN detection
    Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN_AUX, VCCSA, VCCIO, VCCPLL, ATX+5VSB
    BIOS 128Mb AMI UEFI Legal BIOS with multilingual GUI support
    ACPI 6.0 Compliant wake up events
    SMBIOS 2.7 Support
    CPU Core/Cache, GT, DRAM, VPPM, VCCIN_AUX, VCCIO, VCCIO1 2,VCCST, VCCSA Voltage Multi-adjustment
    Special Features ASRock USB 3.2 Gen2
    - ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
    ASRock Super Alloy
    - Premium Power Choke
    - 50A Dr.MOS
    - Sapphire Black PCB
    - High Density Glass Fabric PCB
    ASRock Steel Slot
    ASRock Full Coverage M.2 Heatsink
    ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
    ASRock POST Status Checker (PSC)
    ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
    ASRock Live Update & APP Shop
    Software Features Software
    - ASRock Motherboard Utility (A-Tuning)
    - ASRock Polychrome SYNC
    - ASRock XFast LAN
    UEFI
    - ASRock EZ Mode
    - ASRock Full HD UEFI
    - ASRock My Favorites in UEFI
    - ASRock Instant Flash
    - ASRock Internet Flash
    - ASRock Easy RAID Installer

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
    Operating System Support Microsoft Windows 10 64-bit
    Dimension (W x D x H) : 24.40 x 24.40 x 3.70 cm
    Net Weight 0.75 KG
    Package Dimension (W x D x H) : 26.00 x 27.50 x 6.00 cm
    Gross Weight 1.25 KG
    Volume 4,290.00 cm3
    ​
    ​
    ​
    ​
    ​
    ​
    ​
    ​
    ​​​
    สนใจติดต่อโทร 0863416107

    กรุงเทพ รามอินทรา 39

    คนขายเครดิตดี ขายแยอะอยู่ หาดูได้
